Heat Recovery Steam Generators (HRSGs).

V-Max

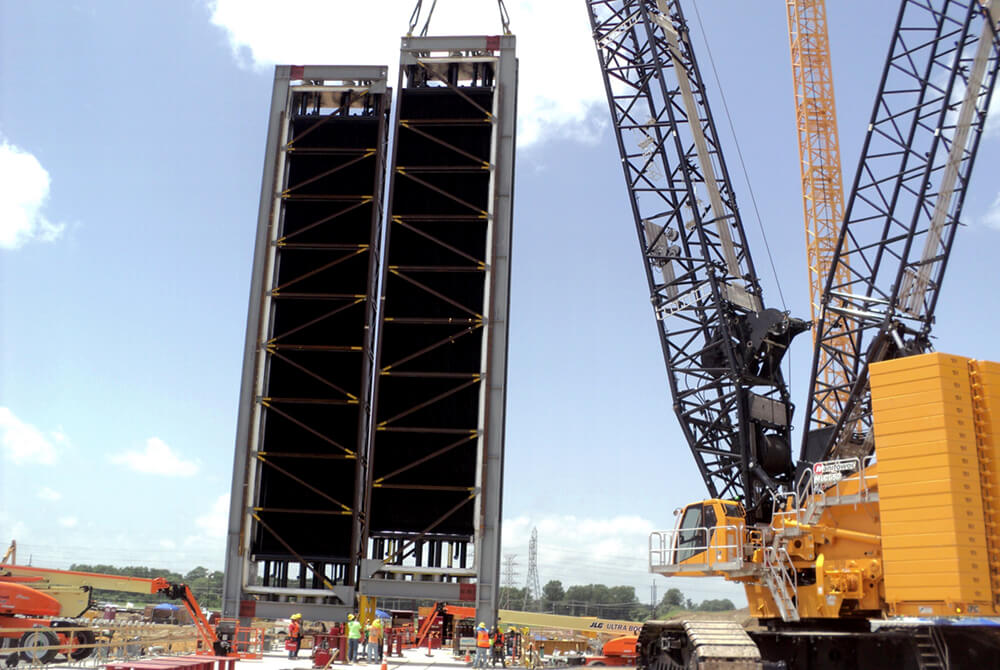

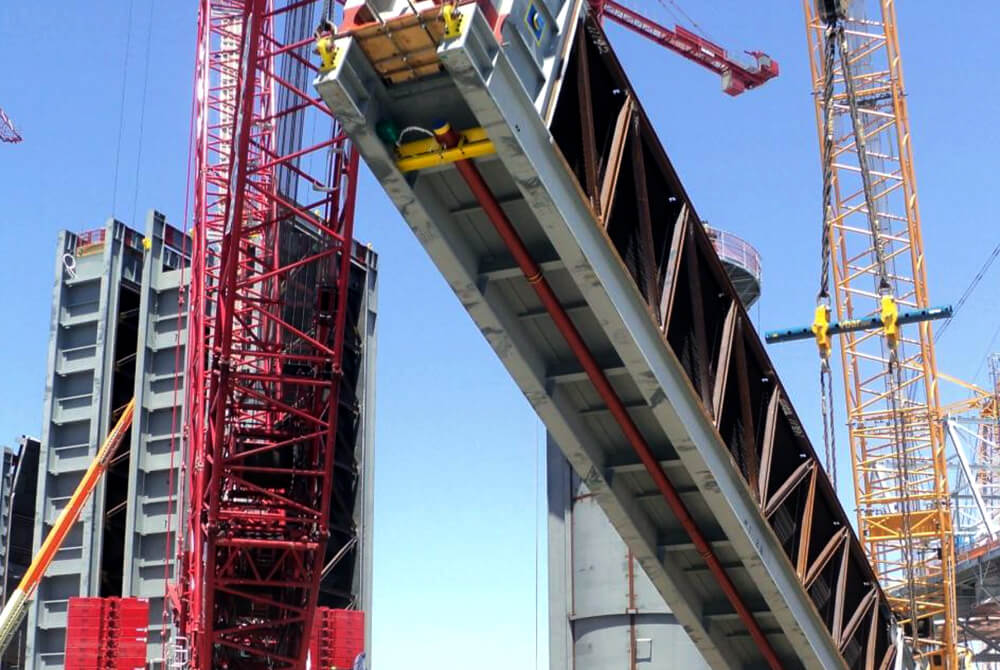

For HRSGs where transport and weight limitations allow, the main steel support structure is integrated and prefabricated with the boxes in a design that is the ultimate in constructability — a design we call V-Max. This HRSG comes with main support columns, top, side, and bottom casing attached to module box and the stub column provided to stabilize the module when erected.

V-Max

Features.

Main support columns, top, side, and bottom casing attached to module box
No field-installed insulation needed between “cold” boxes
Nested downcomers shipped with module box

Benefits.

No lifting frames required, only two moment connections per column line
Reduces field labor hours
Reduces pipe field welds for large diameter pipe
