Heat Recovery Steam Generators (HRSGs).

V-Flex

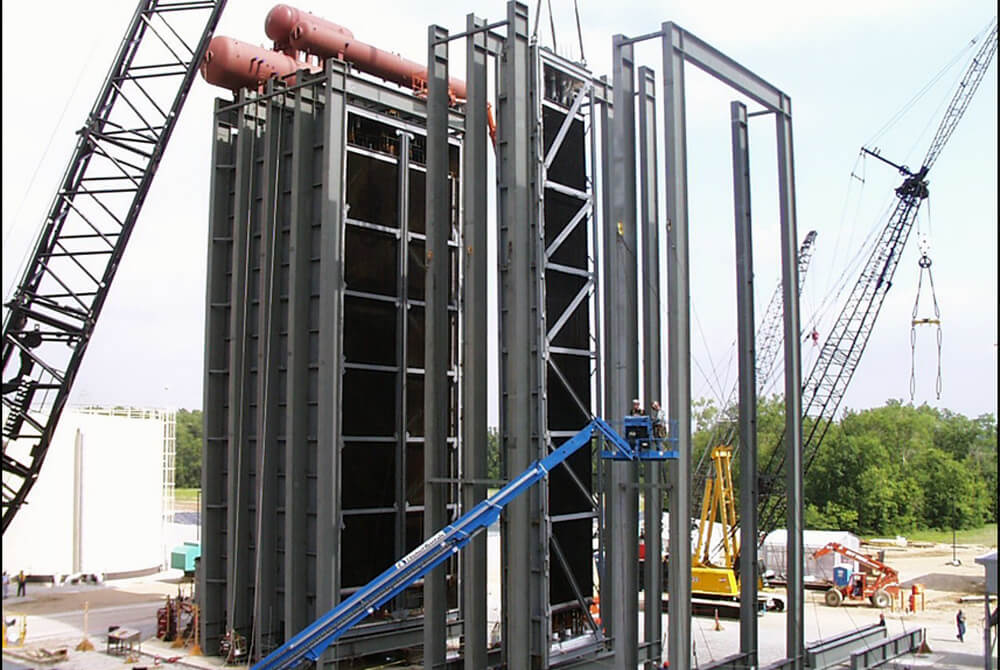

Vogt HRSGs are designed and manufactured to deliver the most constructible and cost-effective equipment unit for each site-specific application. When your combined cycle plant has shipping constraints, we recommend the V-Flex (Hybrid) design. The V-Flex includes the heating surface, casing (side, top, and bottom), and interconnecting piping. Main structural columns (goalposts) are shipped separately.

Vogt Power V-Flex HRSG

Features.

Top, side, and bottom casing attached to module box, compression fit liner panels in the “cold” boxes

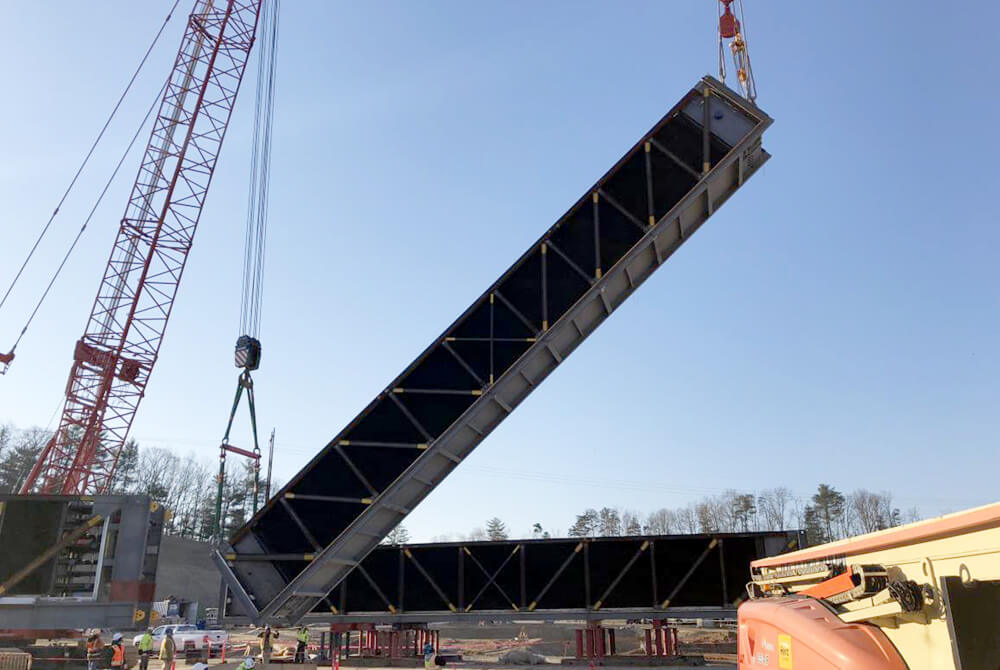

Shipping and uprighting steel shop-installed on each box

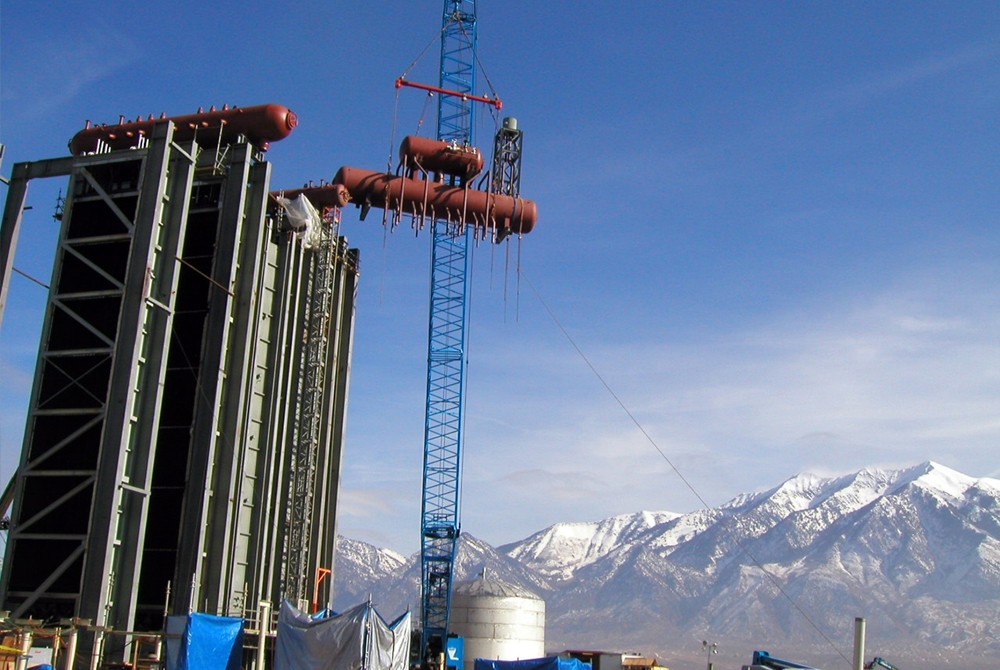

Collection headers shop installed in attic and basement where feasible

Benefits.

Reduces field labor hours, no field-installed insulation needed between “cold” boxes
No lifting frames required. Shipping steel does not have to be removed from “cold” boxes
Minimizes penetrations and reduces field pipe welds
